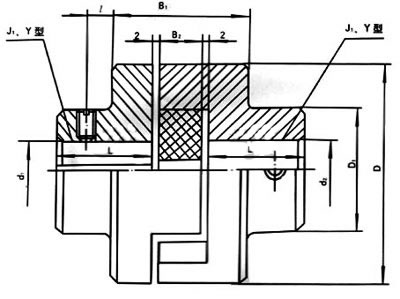

| 滑塊聯軸器,WH型-滑塊連軸器基本參數和主要尺寸 |
|
型號 |
公稱轉矩Tn(N.m) |
許用轉速[n]r/min |
軸孔直徑 |
軸孔長度 |
D |
D1 |
B1 |
B2 |
l |
轉動慣量Kg.m2 |
質量kg |
|
d1 d2 |
Y
|
J1
|
|
L |
|
mm |
|
WH1 |
16 |
10000 |
|
25-32 |
22-27 |
40 |
30 |
52 |
13 |
5 |
0.0007 |
0.6 |
|
|
|
|
WH2
|
31.5 |
8200 |
12,12,16,(17),18 |
50 |
32 |
56 |
18 |
5 |
0.0038 |
1.5 |
|
WH3 |
63 |
7000 |
16,(17),18,20,22 |
42-52 |
30-38 |
70 |
40 |
60 |
18 |
5 |
0.0063 |
1.8 |
|
52-62 |
38-44 |
|
WH4
|
160 |
5700 |
20,22,24,25,28 |
80 |
50 |
64 |
18 |
8 |
0.013 |
2.5 |
|
WH5 |
280 |
4700 |
25,28,30,32,35 |
62-82 |
44-60 |
100 |
70 |
75 |
23 |
10 |
0.045 |
5.8 |
|
82-112 |
60-84 |
|
WH6
|
500 |
3800 |
30,32,35,38,40,42,45 |
120 |
80 |
90 |
33 |
15 |
0.12 |
9.5 |
|
WH7 |
900 |
3200 |
40,42,45,48,50,55 |
112 |
84 |
150 |
100 |
120 |
38 |
25 |
0.43 |
25 |
|
112-142 |
84-107 |
|
WH8
|
1800 |
2400 |
50,55,60,63,65,70 |
190 |
120 |
150 |
48 |
25 |
1.98 |
55 |
|
WH9 |
3550 |
1800 |
65,70,75,80,85 |
172-212 |
132-167 |
330 |
190 |
180 |
58 |
40 |
4.9 |
85 |
|
172-212 |
132-167 |
|
WH10
|
5000 |
1500 |
80,85,90,95,100 |
330 |
190 |
180 |
58 |
40 |
7.5 |
120 |
|
|
|
